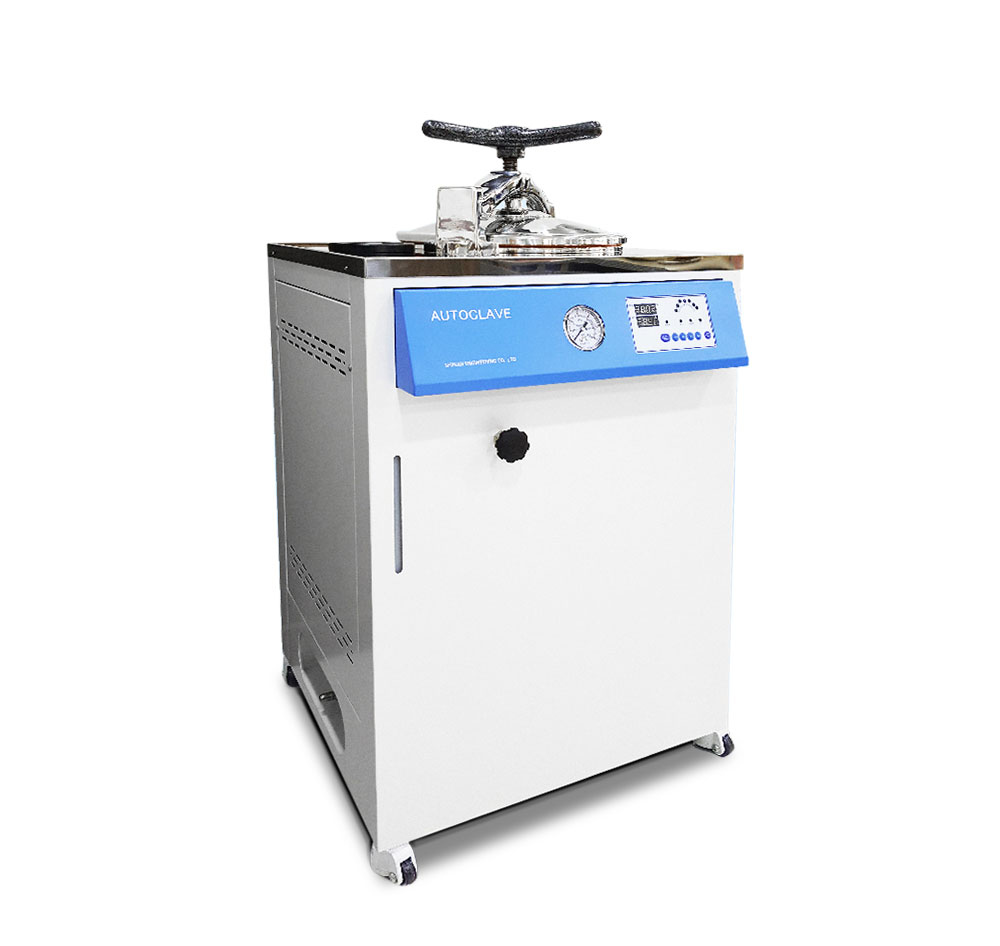

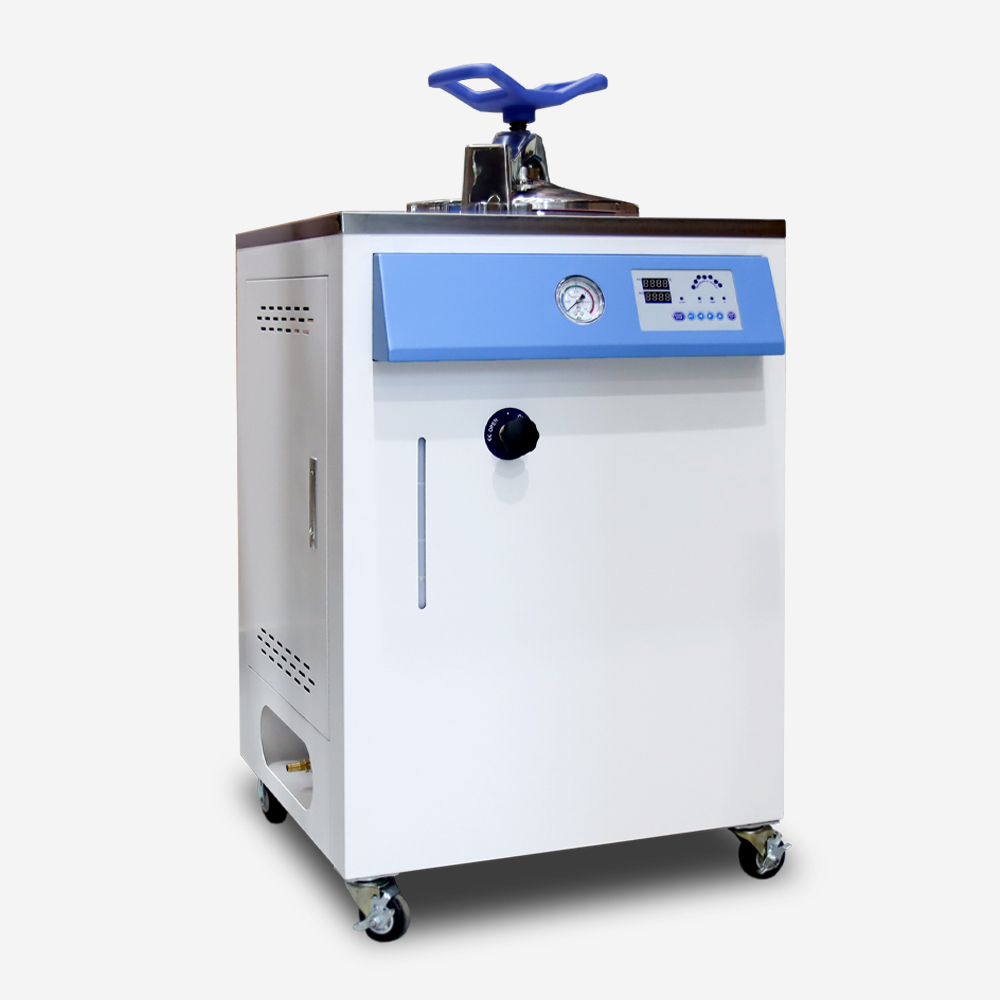

[고급형 고압 멸균기]
오토클레이브 FW
45L, 60L, 80L, 100L
PRODUCT
실험기기
Details
Product specification
| Model | BF-FW45 | BF-FW60 | BF-FW80 | BF-FW100 |
| Capacity | 45L | 62L | 81L | 103L |
| Inner Size | Ø300 X (H)650mm | Ø350 X (H)650mm | Ø400 X (H)650mm | Ø450 X (H)650mm |
| Capacity | 600 X 550 X 1070(mm) | 600 X 550 X 1070(mm) | 670 X 620 X 1110(mm) | 670 X 620 X 1110(mm) |
| Heater Capacity | 2kW | 3kW | 4kW | 4kW |
| 공통사항 | |
| Type | Full Automatic type |
| Chamber Type | Round Vertical type |
| Temp Range | Ambient to 130℃ |
| Temp Controller | LED Microprocessor programmable control |
| Time Range | 99 Hours 59 min Digital Display |
| Temp Sensor | Pt-100Ω (멸균 전용), Auto tuning |
| Accuracy | ±0.5℃ |
| Meterial(In) (Out) | (In) Stainless steel (Out) SS41 steel plate and powder coating |
| Door System(Out) | One touch handle type (single screw door) |
| Basket | Stainless steel (#304) 멸균전용제작 2ea |
| Pressure Range | 0~3kg/㎠ (아날로그) |
| Using Pressure | 0~1.2kg / ㎠ |
| Wheel | Silicon carrier w / Fixed screw frame |
| Electronic Power | AC 220V, 50~60 단상 |
| Safety Device | Safely pressure value, over temp, controller, N.F.B Buzzer, swirch, -etc- |
